Remote IO, Analog Input, 8 Channel, 4-20mA, 0-10 V, 0-20 mA
SKU: RS485-ANALOG-8CH
ในสภาพแวดล้อมอุตสาหกรรมยุค 4.0 ข้อมูลที่แม่นยำคือหัวใจสำคัญของการตัดสินใจในระบบอัตโนมัติ (Data-Driven Decision Making) โมดูลรวบรวมข้อมูลอะนาล็อกที่มีประสิทธิภาพต่ำอาจนำไปสู่ความผิดพลาดในการประมวลผลและการหยุดชะงักของสายการผลิต Waveshare Modbus RTU Analog Input 8CH คือโซลูชันที่ออกแบบมาเพื่อวิศวกรที่ต้องการความน่าเชื่อถือและความแม่นยำสูงสุด โดยมาพร้อมกับความละเอียดระดับ 12-bit (4096 levels) รองรับการอ่านค่าทั้งแรงดัน (Voltage) และกระแส (Current) พร้อมกันในอุปกรณ์เดียว จุดเด่นที่สำคัญคือการผนวกระบบป้องกันสัญญาณรบกวนและระบบแยกส่วนทางไฟฟ้า (Isolation) ระดับอุตสาหกรรม ซึ่งช่วยให้การบูรณาการเข้ากับระบบเดิมหรือการออกแบบระบบ IIoT ใหม่เป็นไปได้อย่างราบรื่นและมั่นคง ถูกออกแบบมาเพื่อเพิ่มประสิทธิภาพการทำงานจริง (Operational Excellence): High-Precision Data Acquisition with Digital Filtering: ด้วยความละเอียด 12-bit และค่าความแม่นยำ (Accuracy) ≤3% เสริมด้วย Oversampling Digital Filtering Algorithm และ Zero-drift Op-amp ทำให้อุปกรณ์สามารถกรองสัญญาณรบกวนได้ในระดับฮาร์ดแวร์ ส่งผลให้ค่าที่อ่านได้มีความเสถียรสูงแม้ในหน้างานที่มีสัญญาณรบกวนไฟฟ้าสูง Industrial-Grade Robustness & Self-healing: การติดตั้ง Dual Isolation (แยกทั้งกำลังไฟฟ้าและสัญญาณแม่เหล็ก) พร้อม TVS และ Resettable Fuse ไม่เพียงแต่ป้องกันความเสียหายจากไฟกระชาก แต่ยังมีระบบ Watchdog ภายในที่ทำหน้าที่ "Self-healing" รีเซ็ตตัวเองหากเกิดสภาวะระบบค้าง ช่วยลดภาระการซ่อมบำรุงและลด Downtime Versatile Input & Ease of Configuration: ความยืดหยุ่นคือหัวใจสำคัญ โมดูลนี้รองรับช่วงสัญญาณที่หลากหลาย (0-5V, 0-10V, 0-20mA, 4-20mA) โดยใช้การตั้งค่าผ่าน Jumper ที่เข้าใจง่าย (Jumper ON = Current Mode, Jumper OFF = Voltage Mode) ช่วยให้ฝ่ายติดตั้งทำงานได้รวดเร็วและลดความผิดพลาด Scalable Architecture for Large Systems: รองรับการเชื่อมต่อแบบ Cascading บน RS485 ได้สูงสุดถึง 255 อุปกรณ์ และการออกแบบเคสให้รองรับการติดตั้งแบบ Stacking ช่วยให้ประหยัดพื้นที่ในตู้คอนโทรล (Cabinet) ได้อย่างมีประสิทธิภาพ
VAT not included
10 in stock
Call us at +66 2-xxx-xxxx
Features at a Glance
MODBUS RTU Analog Input 8CH is an industrial standard analog acquisition module, that supports multiple ranges and 8-channel simultaneous acquisition, with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

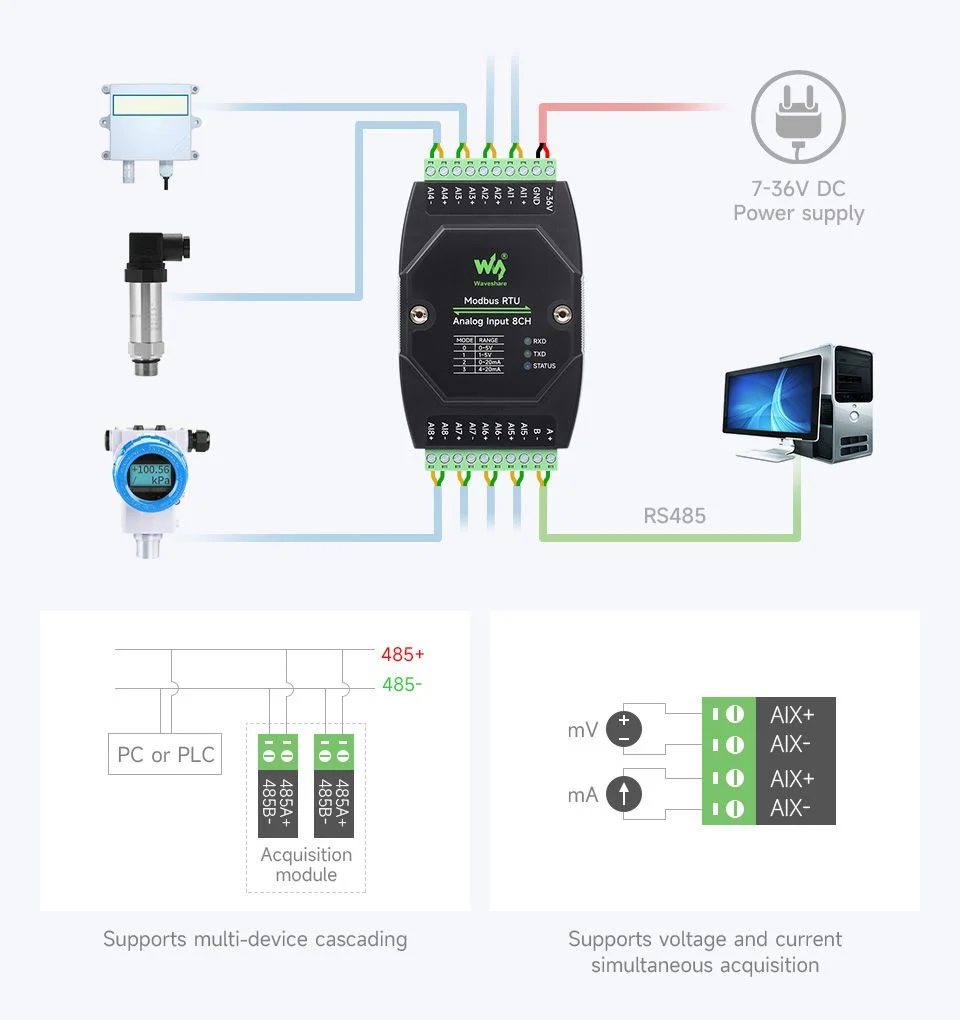

Configurable device address (1~255), multi-devices can be cascaded on RS485 bus
Onboard voltage regulator, supports a 7~36V wide-range power supply
Onboard unibody power supply isolation, provides stable isolated voltage. No extra power supply is needed for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provide over-current/over-voltage proof, lightning proof & anti-electrostatic
Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition
High-precision resistors and zero-drift high-precision operational amplifiers for more accurate data acquisition
Built-in oversampling digital filtering algorithm, and onboard watchdog, for stable output without crashing
DIN Rail-compatible case design, support stacking combination, easy to install and safer to use
LED indicators for indicating the MCU status and signal transceiving status
